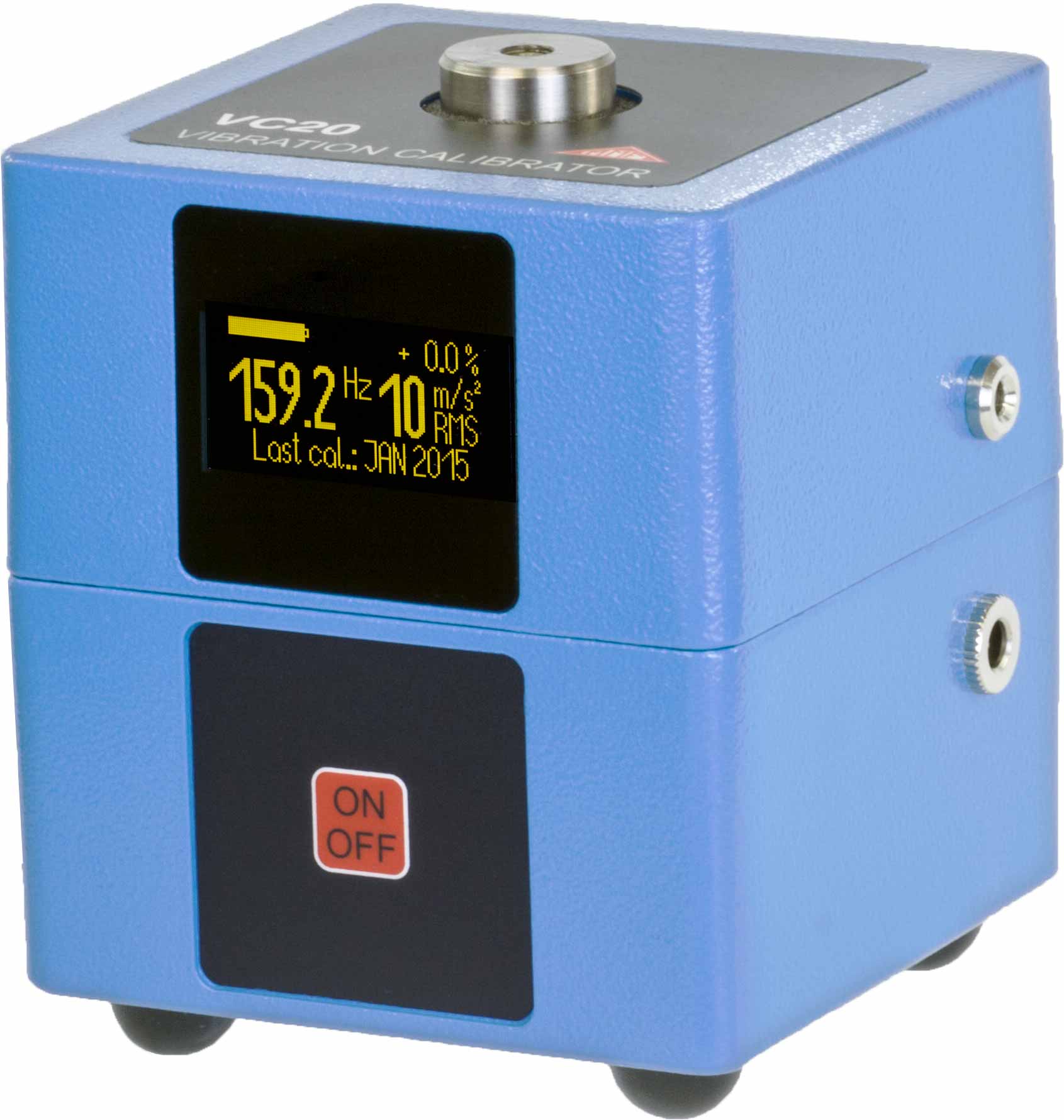

VC20
[ MMF - Metra ]
VC20
[ Calibrators ]
- Best Selling
- Hardware
- Software
- Transmission
- Parameters
- Quick and simple calibration and fault detection of sensors and measuring chains for acceleration, velocity and displacement - Load independent vibration magnitude - Vibration magnitude of 10 m/s² (VC20) or selectable in 5 steps from 1 to 20 m/s² (VC21) - Quartz stabilized vibration frequency of 159.2 Hz (VC20) or selectable in 7 steps from 15.92 Hz to 1280 Hz (VC21) - Suitable for the calibration of whole-body human vibration meters to ISO 8041 and building vibration meters to DIN 4150-3 - Battery operated for mobile use - Traceable to PTB reference standard - Rugged design
Vibration frequencies: 159.2 Hz Vibration magnitudes: 10 m/s² Maximum sensor weight: 600 g Technical file
