- Four channels sound or vibration configurable - Human Vibration measurements meeting ISO 8041:2005 including VDV and MTVV - Sound level meter Class 1, IEC 61672 - Advanced data logger including spectral analysis - USB memory stick providing almost unlimited logging capability - Advanced trigger and alarm functions

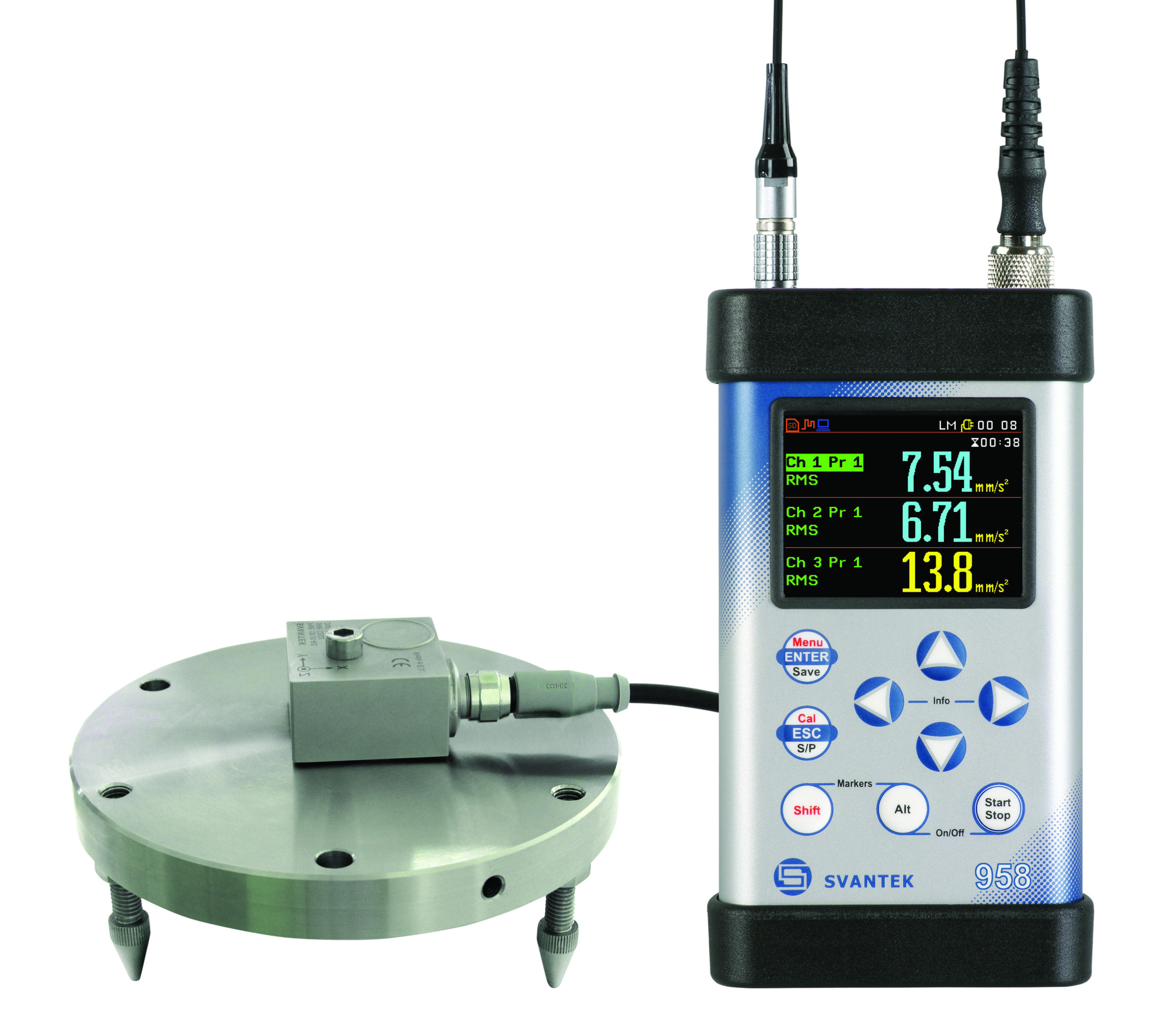

SVAN 958A Four Channels Sound and Vibration Analyser with time domain signal recording. It is a fully digital, four channels 20 kHz signal analyser including Type 1 sound level meter (meeting IEC 61672) and vibration meter (meeting ISO 8041:2005). Simultaneously to the meter mode, SVAN 958A can perform advanced frequency analysis including 1/1 or 1/3 octave analysis, FFT analysis including cross spectra’s and sound intensity measurements. Reverberation Time measurements, noise dose meter and rotation speed measurements are also available. Moreover, SVAN 958A has an exceptional feature of time domain signal recording to the USB memory stick. SVAN 958A is an ideal choice for the “Human Vibration” (according to the ISO 2631-1,2&5 and ISO 5349-1&2 standards). It is offered with all required weighting filters and comprehensive range of equipment for measuring hand-arm and whole-body vibration. Technical file
