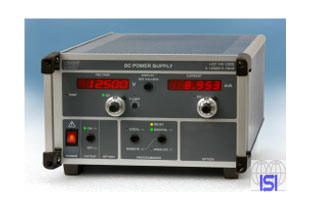

Clocked circuit HCP series from 3.5kV to 300kV / 14W to 15kW In terms of their mode of operation, they are primarily switched-mode power supplies with pulse width modulation. The rectified mains voltage is chopped into square-wave pulses of constant frequency, transformed, rectified and smoothed. The square wave voltage is width modulated for regulation. Due to the high clock frequency, a low residual ripple of the generated output voltage is achieved with high stability, good control dynamics and at the same time only a small amount of stored energy.

SPECIAL FEATURES: - Switching control - Low ripple - High stability - High control speed - Low stored energy Technical file
