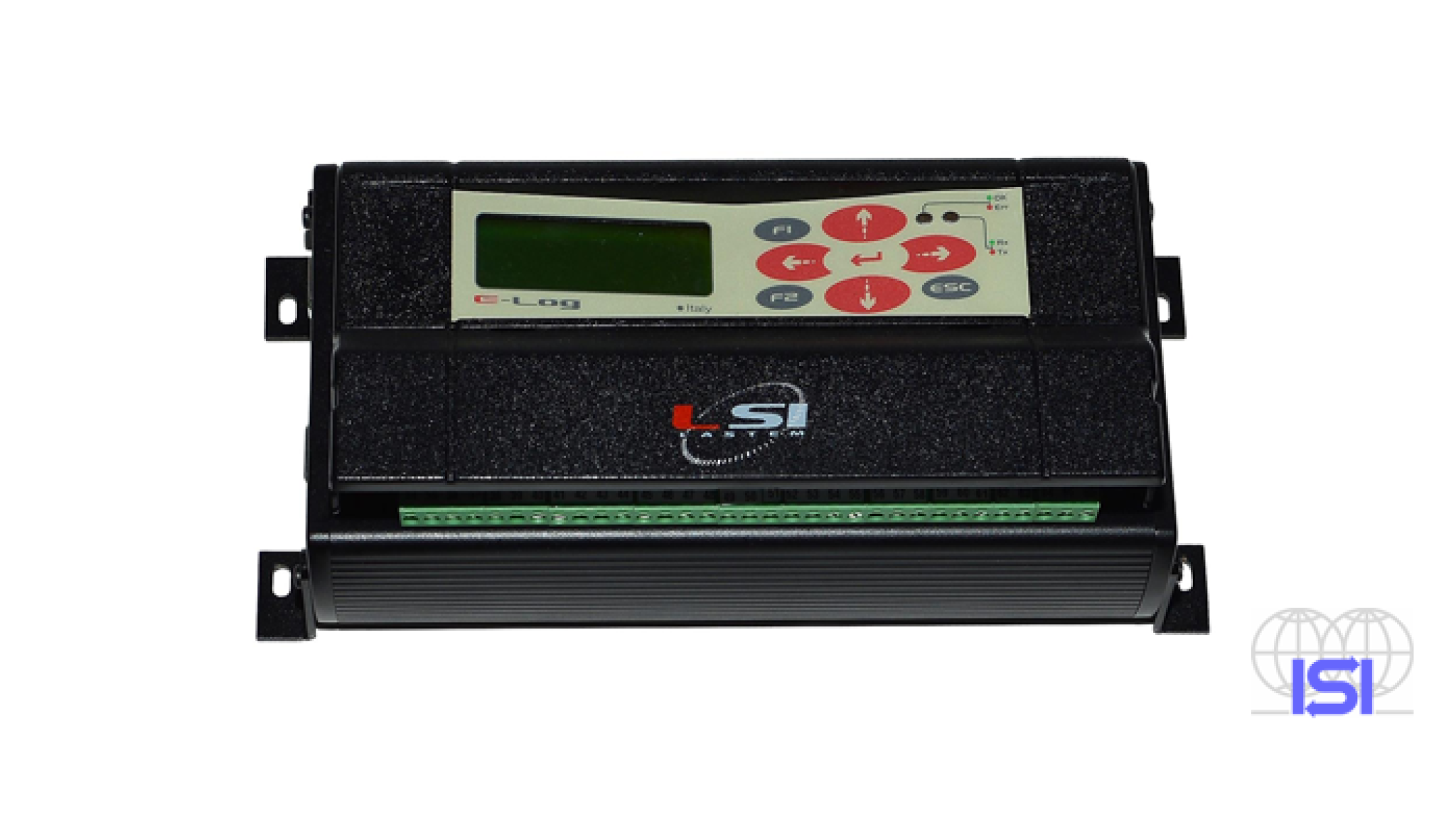

The data logger for meteorological monitoring E-log has been explicitly designed for environmental applications: it is equipped with specific inputs for a wide range of sensors and calculations of derived quantities. E-Log stores the data from the connected sensors and supports different communcation protocols both in input and output. Robust and reliable, E-Log makes measurements possible even in the most severe environments, while the 16-bit A/D converter ensures accurate and reliable data in classic meteorological, hydrological and air quality applications and – more generally – in any environmental application.

Highlights - N. 8/16 analog inputs, n.4 digital inputs, n. 1 RS232 input; - Input extension using MASTER/SLAVE configurations; - Extremely low power consumption; - N. 99 measurements between channels for sensor acquisition and derived quantities; - Internal library for calculating derived quantities and mathematical calculations; - 8MB Flash Memory; - Modbus-RTU Master/Slave, TTY protocols; - Transmission (push) of data in ASCII format with FTP protocols; - N. 2 RS232 ports; - Digital outputs to implement external devices with programmable logics or events; - Acquisition rate from 1 s to 12 hours; - Elaboration rate from 1 s to 12 hours; - Connection to the PC via RS232 (USB/Ethernet/Modem GPRS with external accessories); - Display and keyboard. Technical file
