DM 3600-Universal Intelligent Panel Meter

[ Status Intruments ]

DM 3600-Universal Intelligent Panel Meter

[ Displays ]

  • Best Selling
  • Hardware
  • Software
  • Transmission
  • Parameters

- Universal Input - 6 Digit Display - Loop Power Supply - User Non Linear Function For Tank Level Applications - Optional Programmable Relay & Current Outputs - RS485 Comms Option

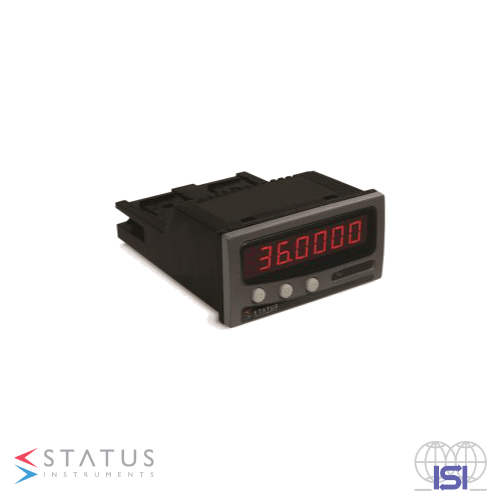

The DM3600A is an intelligent digital panel meter with rate and total function that can accept inputs from a wide variety of sensors and display the signal digitally. The highly innovative case design features option “Pods” which can be plugged in without dismantling or re-calibration. These provide optional outputs of programmable current (POD-03) and 2 x trip relays for alarm points (POD-02). They can be fitted as follows POD-03 + POD-02 POD-02 + POD-02 POD-03 POD-02 All functions are programmable via the integral front panel keys or via the optional RS485 serial communications port using the Modbus protocol. The DM3600 supports TFML (Transfer Function Module Library) i.e. the ability to download custom functionality by means of standard modules available from the web site. This allows pre-written or custom control functions to be quickly and easily incorporated. Please contact our sales office to discuss TFML. The DM3600A totaliser function enables non-volatile storage of the integrated total to be maintained within the unit, even after loss of power. Output options can be selected to operate on Process Variable (PV) or Total. Technical file
